SMP3010 Fast Mirror Positioner/Scanner

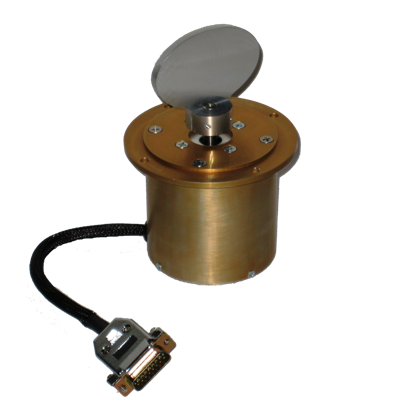

SMP3010 shown with optional scan mirror.

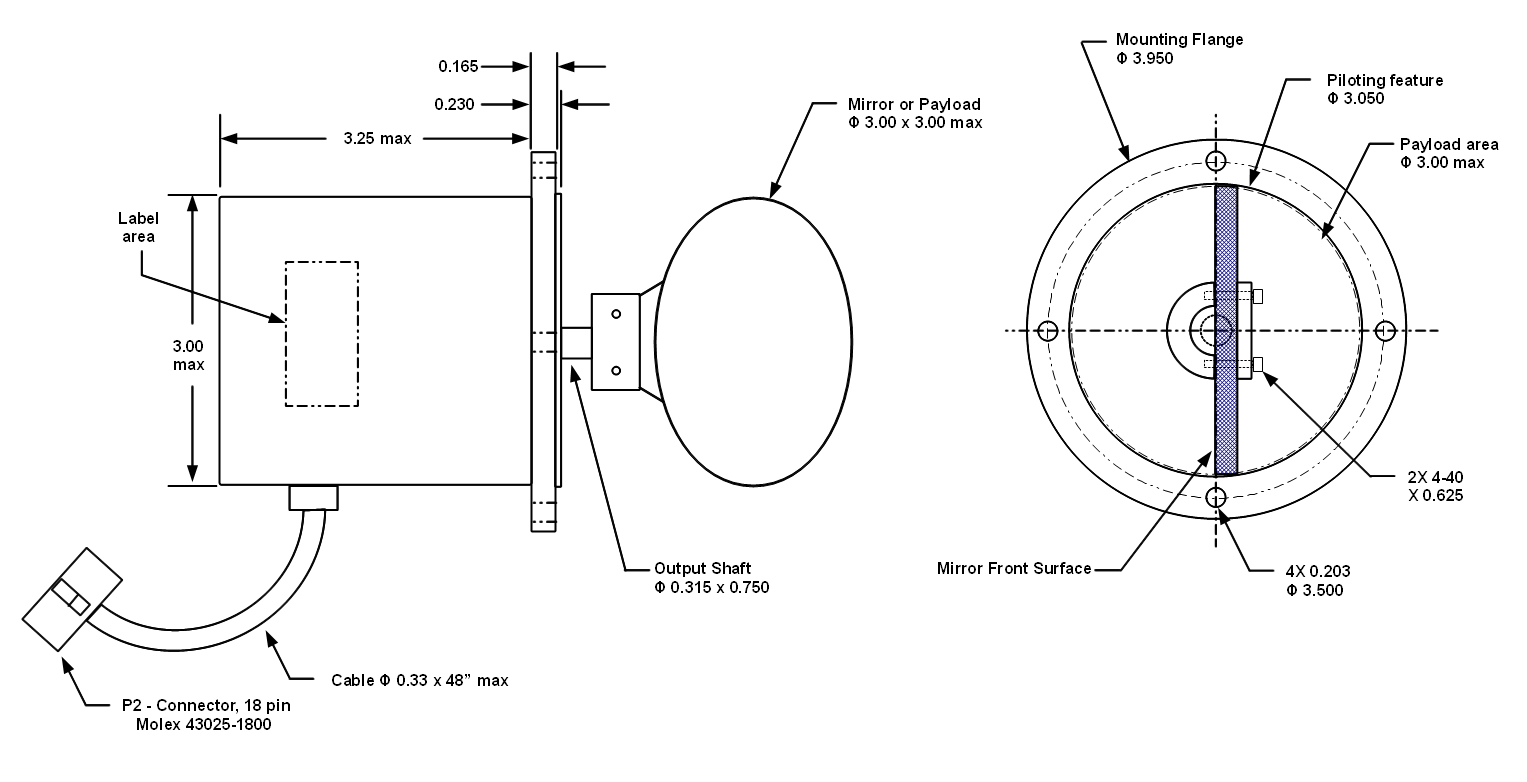

The SMP3010 Fast Mirror Positioner is designed to provide high speed angular positioning of mirrors, prisms, or other payloads for optical and laser beam steering applications. Random or repetitive motion is supported. Angular range is either +/-30 or 360 degrees depending on the feedback device selected. Feedback device options include RVDT, resolver, and optical encoder.
The positioner does not include the mirror or payload. Metal or glass mirrors, as well as other payloads may be supplied to customer specifications.
The positioner does not include the mirror or payload. Metal or glass mirrors, as well as other payloads may be supplied to customer specifications.
Features
> Fast response time: 20ms for 45° (90° optical) mirror rotation.
> Low cost: Best performance to price relative to competing devices.
> Payload interface: 8mm X 18mm output shaft (optic or payload not included).
> Angular Range: +/-30° or 360° depending on configuration.
> Rugged mechanical design & precision, long life ball bearings.
> Type-II control system, no inherent position or velocity errors.
> Brushless DC motor with RVDT, Resolver, or Optical Encoder feedback.
> Power requirement: 20VDC to 36VDC, 4.50A max.
> Accommodates various payloads, mirrors up to approximately 6.00” major axis .
> Operating temperature range: -25ºC to +70ºC (RVDT or Resolver feedback).
> Optics: Diamond machined metal mirrors are available, made to customer specifications.
> Custom configurations available to accommodate mounting, payload, and control requirements.
> Fast response time: 20ms for 45° (90° optical) mirror rotation.
> Low cost: Best performance to price relative to competing devices.
> Payload interface: 8mm X 18mm output shaft (optic or payload not included).
> Angular Range: +/-30° or 360° depending on configuration.
> Rugged mechanical design & precision, long life ball bearings.
> Type-II control system, no inherent position or velocity errors.
> Brushless DC motor with RVDT, Resolver, or Optical Encoder feedback.
> Power requirement: 20VDC to 36VDC, 4.50A max.
> Accommodates various payloads, mirrors up to approximately 6.00” major axis .
> Operating temperature range: -25ºC to +70ºC (RVDT or Resolver feedback).
> Optics: Diamond machined metal mirrors are available, made to customer specifications.
> Custom configurations available to accommodate mounting, payload, and control requirements.
