SSR2300 Rotary Scanner/Controller System
The SSR2300 Scan Motor/Controller is designed to provide precise rotation of scan mirrors and active E/O payloads operating in the range of 30RPM to 4000RPM. Typical applications include laser leveling systems, laser based position measurement systems, and any optical system requiring precision constant velocity scanning.

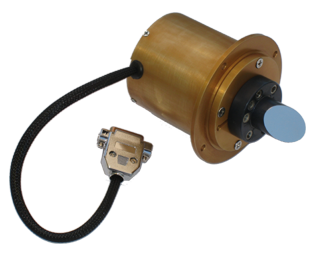

SSR2300 shown with optional scan mirrors.

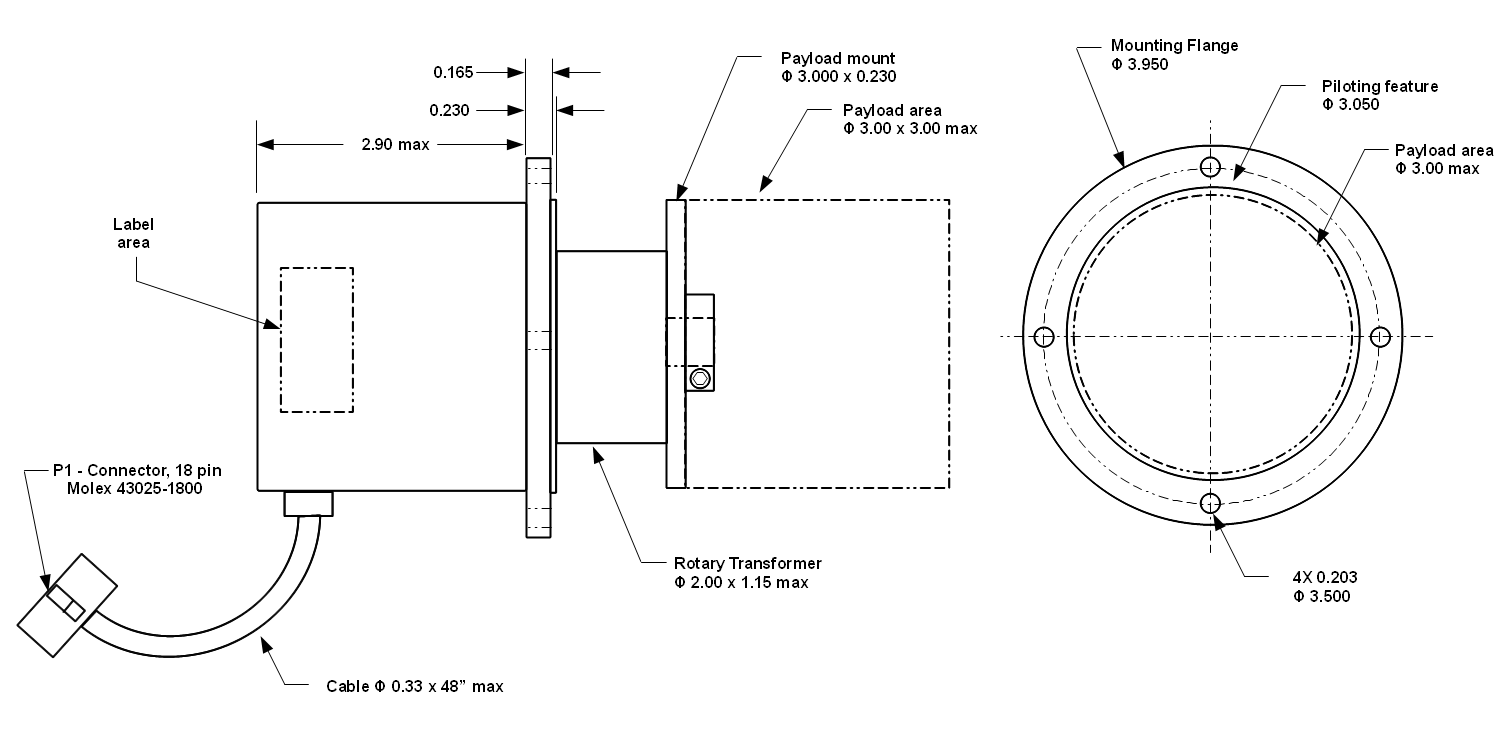

Features
> Excellent speed stability: Speed jitter <0.005% (50PPM) @ 4KRPM, Standard deviation of 100 revolutions.
> Low cost: Cost effective solution for many scanning applications (Optic/payload specified by customer).
> Speed range: 30RPM to 4000RPM, bi-directional rotation.
> Rugged mechanical design & precision, long life ball bearings.
> Phase lock-loop speed control system, no long term speed error.
> Brushless DC motor with optical encoder feedback.
> Optical encoder outputs (A, B, and Index ).
> Power requirement: 10VDC to 24VDC, 50W max power consumption.
> Rotary transformer option provides up to 2W to power active payloads.
> Accommodates payloads up to 24oz (680g) and 3” (76mm) diameter.
> -25ºC to +75ºC operating temperature range.
> Custom configurations available to accommodate mounting, payload (optic), and control requirements.
> Excellent speed stability: Speed jitter <0.005% (50PPM) @ 4KRPM, Standard deviation of 100 revolutions.
> Low cost: Cost effective solution for many scanning applications (Optic/payload specified by customer).
> Speed range: 30RPM to 4000RPM, bi-directional rotation.
> Rugged mechanical design & precision, long life ball bearings.
> Phase lock-loop speed control system, no long term speed error.
> Brushless DC motor with optical encoder feedback.
> Optical encoder outputs (A, B, and Index ).
> Power requirement: 10VDC to 24VDC, 50W max power consumption.
> Rotary transformer option provides up to 2W to power active payloads.
> Accommodates payloads up to 24oz (680g) and 3” (76mm) diameter.
> -25ºC to +75ºC operating temperature range.
> Custom configurations available to accommodate mounting, payload (optic), and control requirements.
